LED light frame for infrared heaters
LED infrared light frame overview
INFRARED HEATER WITH LIGHT
PERFORMANCE FEATURES
| Material profile: | Aluminum white anodized light frame |
| Material cover: | Plastic opal white |
| Voltage: | 220-240 V AC |
| CRI: | >92 |
| Light temperature: | 1.900-4.000 Kelvin |
| Warranty: | 7 years heating, 2 years LED light frame & controls |
| Accessories: | Remote control included |
| Article Number | Modell | Dimensions L | B | H mm |
| 115905 | LED Light Frame 145 | 576 x 376 x 25+18 |
| 115906 | LED Light Frame 300 | 648 x 648 x 25+18 |
| 115908 | LED Light Frame 350 | 856 x 556 x 25+18 |
| 115909 | LED Light Frame 400 | 1.556 x 376 x 25+18 |
| 115910 | LED Light Frame 460 | 948 x 648 x 25+18 |
| 115911 | LED Light Frame 610 | 1.248 x 556 x 25+18 |
| 115912 | LED Light Frame 705 | 1.248 x 648 x 25+18 |
| 115913 | LED Light Frame 905 | 1.056 x 956 x 25+18 |
| 115914 | LED Light Frame 905L | 1.556 x 648 x 25+18 |

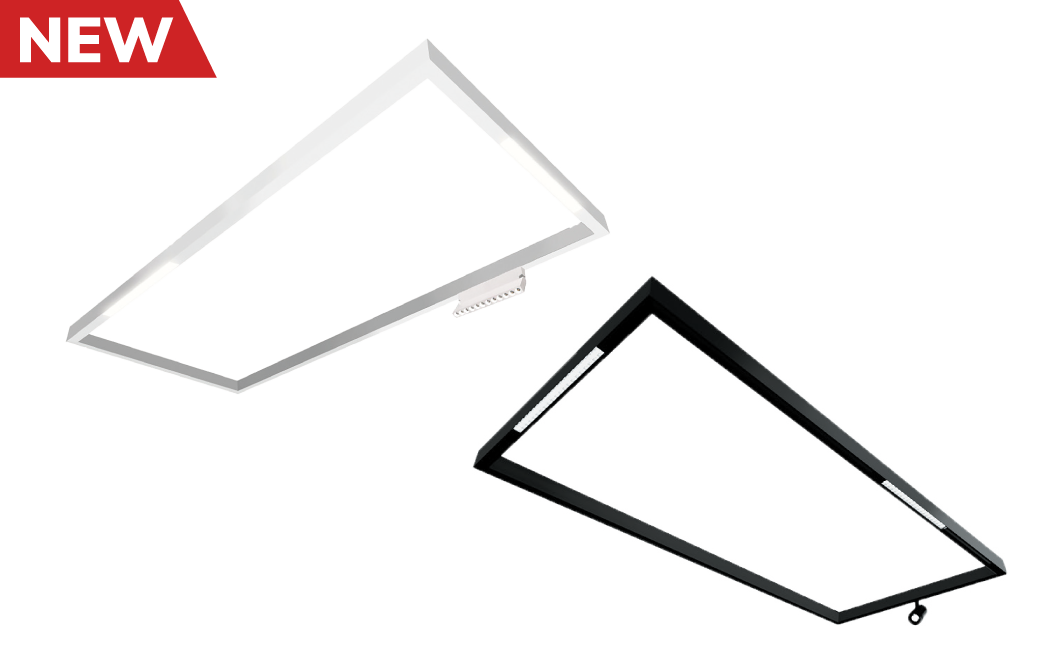

TRACK48 SURFACE-MOUNTED LIGHT FRAMES
These individually adaptable light frames are manufactured from components from our Track48 surface-mounted track range. Accordingly, all Track48 luminaires can be used in the surface-mounted light frames. An acoustic absorber inlay or an infrared panel from our range that matches the internal dimensions of the frame can also be fitted as an option.
The surface-mounted light frames can also be can also be customised.
