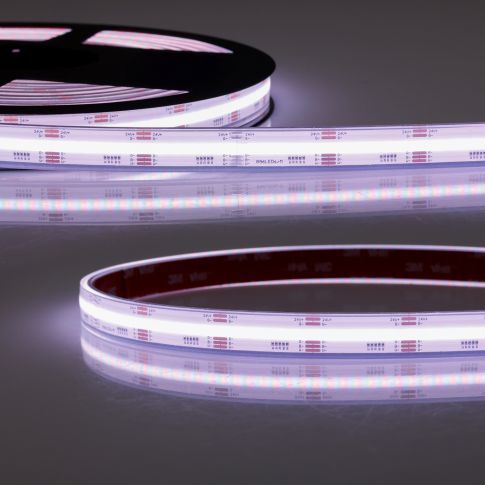

LED Aqua COB RGB+2700K linear flex stripe, 24V DC, 20W, IP68, 5m roll, 896 LEDs/m
In stock
Article number
117754
| Article number | 117754 |
|---|---|
| Product description | LED Aqua COB RGB+2700K linear flex stripe, 24V DC, 20W, IP68, 5m roll, 896 LEDs/m |
| GTIN - EAN | 9009377180521 |
| Features |        |
| Special features | Separation point: 31.25 mm with 28 SMDs each | Pitch (light point center-center): 1.12 mm | 1 unit (roll) = 5 m | max. flex stripe length per infeed: 5 m | Length tolerance + thermal expansion: 1% | No cooling profile required | Includes 3M VHB adhesive tape | Clean and degrease the surface before application! Do not remove again! | Silicone encapsulation | Special feature: Connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 20 W/m |
| Active power | 20 W/m |
| Luminous flux in lumen | 1050 lm/m |
| Efficiency in LM | 52 |
| RGB light source | Yes |
| Color temperature | 2700K |
| Permissible ambient temp. | -20°C - 40°C |
| CRI Ra | 80 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP68 |
| Housing material | Silicone |
| Pitch SMD (mm) | 1.12 |
| Max. length per feed (m) | 5.00 m |
| Cooling mass g/m | 0.00 g/m |
| Tape type | 3M VHB |
| LED chips per metre | 896 |
| Separation point (mm) | 31.25 mm |
| Weight in gramm | 260 |
| Length in mm | 5000,0 |
| Width in mm | 14,8 |
| Height in mm | 5,8 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
