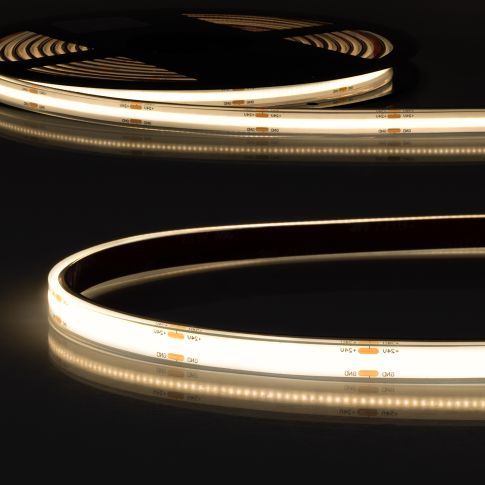

LED AQUA COB930 Linear flex stripe, 24V DC, 8W, IP68, 3000K, 5m roll, 480 LED/m
In stock
Article number
115779
| Article number | 115779 |
|---|---|
| Product description | LED AQUA COB930 Linear flex stripe, 24V DC, 8W, IP68, 3000K, 5m roll, 480 LED/m |
| GTIN - EAN | 9009377147883 |
| Features |        |
| Special features | Separation point: 50mm with 24 SMD each | Pitch (light point center-center): 2,08mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 8 W/m |
| Active power | 8 W/m |
| Luminous flux in lumen | 675 lm/m |
| Efficiency in LM | 84 |
| RGB light source | No |
| Color temperature | 3000K |
| Permissible ambient temp. | -20°C - 40°C |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP68 |
| Housing material | Silicone |
| Pitch SMD (mm) | 2.08 |
| LED per disconnection point | 24,000000 |
| Max. length per feed (m) | 5.00 m |
| Cooling mass g/m | 0.00 g/m |
| Tape type | 3M VHB |
| Potting material | Silikon |
| LED chips per metre | 480 |
| LED per roll | 2.400,00 |
| Enclosed accessories | 4 Endkappen | 10 Montagebügel | 20 Schrauben | Kleber |
| Separation point (mm) | 50.00 mm |
| Weight in gramm | 288 |
| Length in mm | 5000,0 |
| Width in mm | 10,0 |
| Height in mm | 5,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
