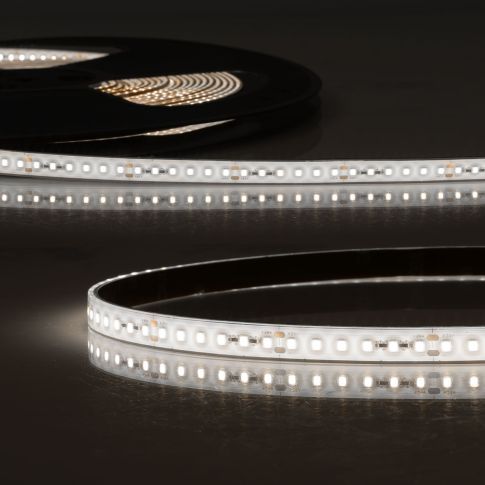

LED AQUA840 CC flex stripe, 24V DC, 12W, IP68, 4000K, 15m roll, 120 LED/m
In stock
Article number
113105
| Article number | 113105 |
|---|---|
| Product description | LED AQUA840 CC flex stripe, 24V DC, 12W, IP68, 4000K, 15m roll, 120 LED/m |
| GTIN - EAN | 9009377047800 |
| Features |       |
| Special features | Separation point: 50mm with 6 SMD each | Pitch (light point center-center): 8,33mm | 1 unit (roll) = 15m | max. flex stripe length per infeed: 15m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M 200MP adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | The connectors of the group fit: O1-212 | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 24 V DC |
| Rated power | 12 W/m |
| Active power | 11 W/m |
| Luminous flux in lumen | 1250 lm/m |
| RGB light source | No |
| Color temperature | 4000K |
| CRI Ra | 83 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP68 |
| Housing material | Silicone |
| Pitch SMD (mm) | 8.33 |
| LED per disconnection point | 6.000000 |
| Max. length per feed (m) | 15.00 m |
| Cooling mass g/m | 0.00 g/m |
| Tape type | 3M 200MP |
| Potting material | Silikon |
| LED chips per metre | 120 |
| LED per roll | 1.800,00 |
| Matching connectors | O1-212 |
| Enclosed accessories | 4 Endkappen | 20 Montagebügel | Kleber |
| Separation point (mm) | 50.00 mm |
| Weight in gramm | 1340 |
| Length in mm | 15000,0 |
| Width in mm | 12,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
