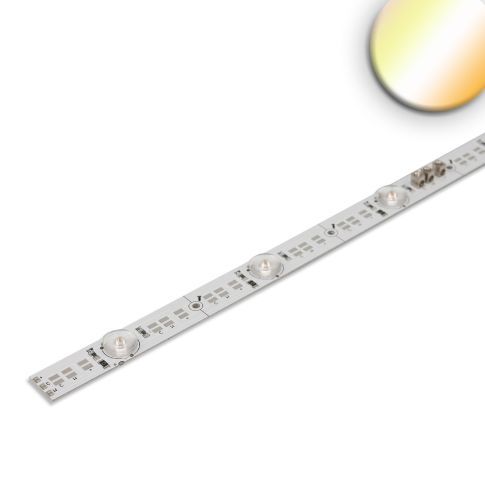

LED Circuit board Backlight 825/855, 1175mm, 180° lens, 24V, 8W+8W, IP20, white dynamic, dimmable
In stock
Article number
116930
| Article number | 116930 |
|---|---|
| Product description | LED Circuit board Backlight 825/855, 1175mm, 180° lens, 24V, 8W+8W, IP20, white dynamic, dimmable |
| GTIN - EAN | 9009377168741 |
| Features |       |
| Special features | Color temperature adjustable via dynamic white controller: 2500K ... 7,9W ... 830lm | 5500K ... 7,9W ... 960lm | 4000K ... 7,9W ... 900lm | 2500K + 5500K ... 15,8W ... 1750lm |
| Nominal voltage | 24 V DC |
| Rated power | 16 W |
| Active power | 15,8 W |
| Luminous flux in lumen | 1750 lm |
| RGB light source | No |
| Color temperature | 2500K - 5500K |
| CRI Ra | 80 |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP20 |
| Housing material | Copper |
| Pitch SMD (mm) | 78.00 |
| LED per disconnection point | 78,000000 |
| Cooling mass g/m | 0.00 g/m |
| Tape type | 3M VHB |
| LED chips per metre | 12 |
| Weight in gramm | 100 |
| Length in mm | 1175,0 |
| Width in mm | 18,0 |
| Height in mm | 8,0 |
| Lifetime L70|B10 | 50000 |
| Useful life L70|B50 | 75000 |
| Useful life L80|B50 in hours | 66000 |
| Guarantee in years | 3 |
| Bulky goods | Y |
| Net price | N |
| Excess lengths | N |
