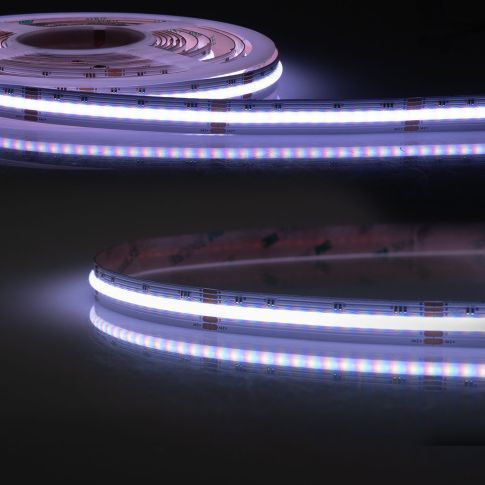

LED COB RGB+2700K linear flex stripe, 24V DC, 20W, IP20, 5m roll, 896 LEDs/m
In stock
Article number
117753
| Article number | 117753 |
|---|---|
| Product description | LED COB RGB+2700K linear flex stripe, 24V DC, 20W, IP20, 5m roll, 896 LEDs/m |
| GTIN - EAN | 9009377180514 |
| Features |        |
| Special features | Separation point: 31.25 mm with 28 SMDs each | Pitch (light point center-center): 1.12 mm | 1 unit (roll) = 5 m | max. flex stripe length per infeed: 5 m | Length tolerance + thermal expansion: 1% | Required cooling mass min. 140 g/m | Includes 3M 300LSE adhesive tape | Clean and degrease the surface before application! Do not remove again! | Compatible with connectors from group: K2-512 | Special feature: Connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 20 W/m |
| Active power | 20 W/m |
| Luminous flux in lumen | 1150 lm/m |
| Efficiency in LM | 57 |
| RGB light source | Yes |
| Color temperature | 2700K |
| Permissible ambient temp. | 0°C - 40°C |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP20 |
| Pitch SMD (mm) | 1.00 |
| Max. length per feed (m) | 5.00 m |
| Cooling mass g/m | 140.00 g/m |
| Tape type | 3M 300LSE |
| LED chips per metre | 896 |
| Separation point (mm) | 31.00 mm |
| Weight in gramm | 220 |
| Length in mm | 5000,0 |
| Width in mm | 12,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
