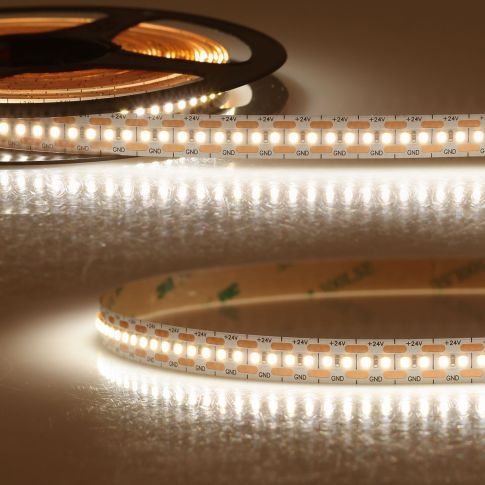

LED CRI927 Linear10 flex stripe, 24V DC, 6W, IP20, 2700K, 20m roll, 180 LED/m
In stock
Article number
113964
| Article number | 113964 |
|---|---|
| Product description | LED CRI927 Linear10 flex stripe, 24V DC, 6W, IP20, 2700K, 20m roll, 180 LED/m |
| GTIN - EAN | 9009377067334 |
| Features |       |
| Special features | Separation point: 11,11mm with 2 SMD each | Pitch (light point center-center): 5,56mm | 1 unit (roll) = 20m | max. flex stripe length per infeed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 6 W/m |
| Active power | 6 W/m |
| Luminous flux in lumen | 600 lm/m |
| Efficiency in LM | 100 |
| RGB light source | No |
| Color temperature | 2700K |
| CRI Ra | 93 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Pitch SMD (mm) | 5.56 |
| LED per disconnection point | 2,000000 |
| Max. length per feed (m) | 10.00 m |
| Cooling mass g/m | 45.00 g/m |
| Tape type | 3M 300LSE |
| LED chips per metre | 180 |
| LED per roll | 3.600,00 |
| Matching connectors | K2-210 |
| Separation point (mm) | 11.11 mm |
| Weight in gramm | 400 |
| Length in mm | 20000,0 |
| Width in mm | 10,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
Alternative article
