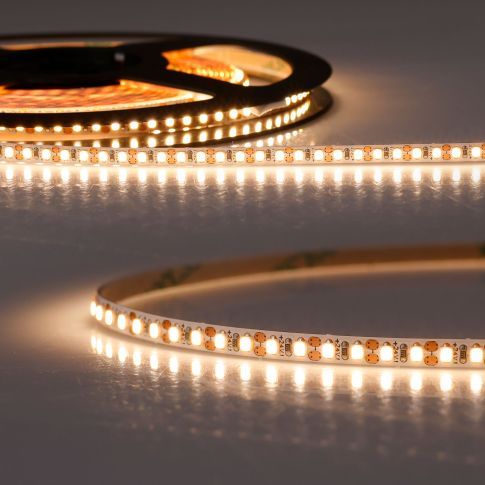

LED CRI927 MICRO Linear flex stripe, 24V DC, 10W, IP20, 2700K, 5m roll, 240 LED/m
In stock
Article number
113457
| Article number | 113457 |
|---|---|
| Product description | LED CRI927 MICRO Linear flex stripe, 24V DC, 10W, IP20, 2700K, 5m roll, 240 LED/m |
| GTIN - EAN | 9009377054631 |
| Features |       |
| Special features | Separation point: 8,33mm with 2 SMD each | Pitch (light point center-center): 4,17mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 10 W/m |
| Active power | 10 W/m |
| Luminous flux in lumen | 900 lm/m |
| Efficiency in LM | 90 |
| RGB light source | No |
| Color temperature | 2700K |
| CRI Ra | 93 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Pitch SMD (mm) | 4.17 |
| LED per disconnection point | 2,000000 |
| Max. length per feed (m) | 5.00 m |
| Cooling mass g/m | 75.00 g/m |
| Tape type | 3M 300LSE |
| LED chips per metre | 240 |
| LED per roll | 1.200,00 |
| Separation point (mm) | 8.33 mm |
| Weight in gramm | 90 |
| Length in mm | 5000,0 |
| Width in mm | 4,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
