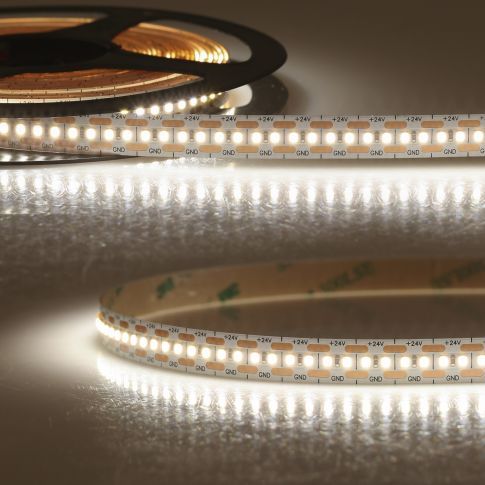

LED CRI930 Linear10 flex stripe, 24V DC, 15W, IP20, 3000K, 20m roll, 280 LED/m
In stock
Article number
113204
| Article number | 113204 |
|---|---|
| Product description | LED CRI930 Linear10 flex stripe, 24V DC, 15W, IP20, 3000K, 20m roll, 280 LED/m |
| GTIN - EAN | 9009377049835 |
| Features |       |
| Special features | Separation point: 7,14mm with 2 SMD each | Pitch (light point center-center): 3,57mm | 1 unit (roll) = 20m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 9080A adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 15 W/m |
| Active power | 15 W/m |
| Luminous flux in lumen | 1600 lm/m |
| Efficiency in LM | 106 |
| RGB light source | No |
| Color temperature | 3000K |
| Permissible ambient temp. | 0°C - 45°C |
| CRI Ra | 92 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Pitch SMD (mm) | 3.57 |
| LED per disconnection point | 2,000000 |
| Max. length per feed (m) | 5.00 m |
| Cooling mass g/m | 75.00 g/m |
| Tape type | 3M 9080A |
| LED chips per metre | 280 |
| LED per roll | 5.600,00 |
| Matching connectors | K2-210 |
| Separation point (mm) | 7.14 mm |
| Weight in gramm | 400 |
| Length in mm | 20000,0 |
| Width in mm | 10,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
