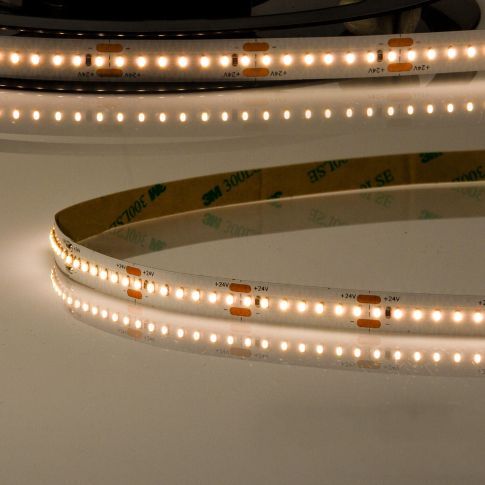

LED CRI930 Linear8 flex stripe, 24V DC, 8W, IP20, 3000K, 5m roll, 210 LED/m
In stock
Article number
114717
| Article number | 114717 |
|---|---|
| Product description | LED CRI930 Linear8 flex stripe, 24V DC, 8W, IP20, 3000K, 5m roll, 210 LED/m |
| GTIN - EAN | 9009377086281 |
| Features |       |
| Special features | Separation point: 33,33mm with 7 SMD each | Pitch (light point center-center): 4,76mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-28 | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 8 W/m |
| Active power | 8 W/m |
| Luminous flux in lumen | 830 lm/m |
| Efficiency in LM | 103 |
| RGB light source | No |
| Color temperature | 3000K |
| CRI Ra | 92 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Pitch SMD (mm) | 4.76 |
| LED per disconnection point | 7,000000 |
| Max. length per feed (m) | 10.00 m |
| Cooling mass g/m | 45.00 g/m |
| Tape type | 3M 300LSE |
| LED chips per metre | 210 |
| LED per roll | 1.050,00 |
| Matching connectors | K2-28 |
| Separation point (mm) | 33.33 mm |
| Weight in gramm | 100 |
| Length in mm | 5000,0 |
| Width in mm | 8,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
