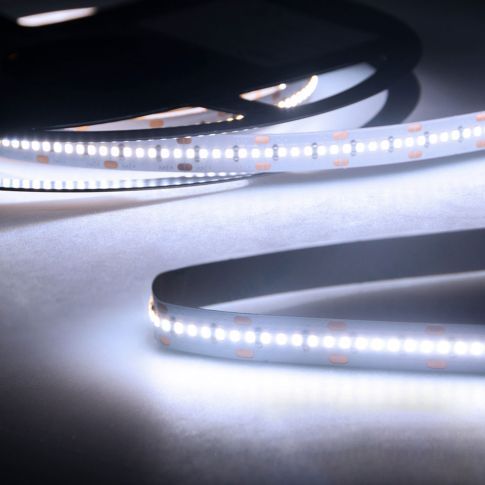

LED CRI965 Linear10 flex stripe, 24V DC, 6W, IP20, 6500K, 5m roll, 180 LED/m
In stock
Article number
113149
| Article number | 113149 |
|---|---|
| Product description | LED CRI965 Linear10 flex stripe, 24V DC, 6W, IP20, 6500K, 5m roll, 180 LED/m |
| GTIN - EAN | 9009377048715 |
| Features |      |
| Special features | Separation point: 33,33mm with 6 SMD each | Pitch (light point center-center): 5,56mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 200MP adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 6 W/m |
| Active power | 6 W/m |
| Luminous flux in lumen | 700 lm/m |
| RGB light source | No |
| Color temperature | 6500K |
| CRI Ra | 92 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Pitch SMD (mm) | 5.56 |
| LED per disconnection point | 6.000000 |
| Max. length per feed (m) | 10.00 m |
| Cooling mass g/m | 45.00 g/m |
| Tape type | 3M 200MP |
| LED chips per metre | 180 |
| LED per roll | 900,00 |
| Separation point (mm) | 33.33 mm |
| Weight in gramm | 98 |
| Length in mm | 5000,0 |
| Width in mm | 10,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
