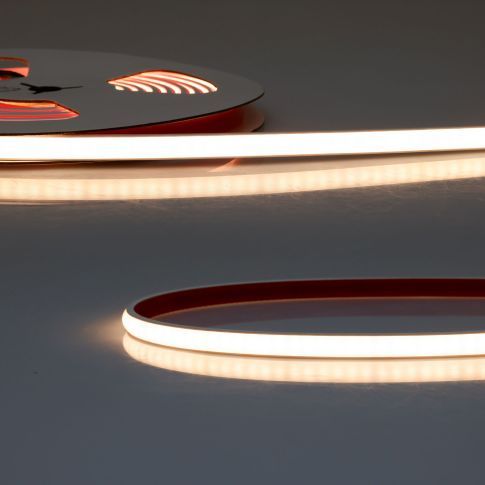

LED FW1903S SPI flex tube, 24V, 10W, IP66, 4000K, 5m roll, 180 LED/m, 6 LED/IC
In stock
Article number
117739
| Article number | 117739 |
|---|---|
| Product description | LED FW1903S SPI flex tube, 24V, 10W, IP66, 4000K, 5m roll, 180 LED/m, 6 LED/IC |
| GTIN - EAN | 9009377180378 |
| Features |        |
| Nominal voltage | 24 V DC |
| Rated power | 10 W/m |
| Active power | 10 W/m |
| Luminous flux in lumen | 640 lm/m |
| Efficiency in LM | 64 |
| RGB light source | No |
| Color temperature | 4000K |
| Permissible ambient temp. | -20°C - 40°C |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP66 |
| Housing material | Silicone |
| Pitch SMD (mm) | 5.00 |
| Max. length per feed (m) | 5.00 m |
| Cooling mass g/m | 0.00 g/m |
| LED chips per metre | 180 |
| Separation point (mm) | 33.00 mm |
| Length in mm | 5000,0 |
| Width in mm | 10,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 35000 |
| Useful life L70|B50 | 53000 |
| Useful life L80|B50 in hours | 46000 |
| Guarantee in years | 3 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
