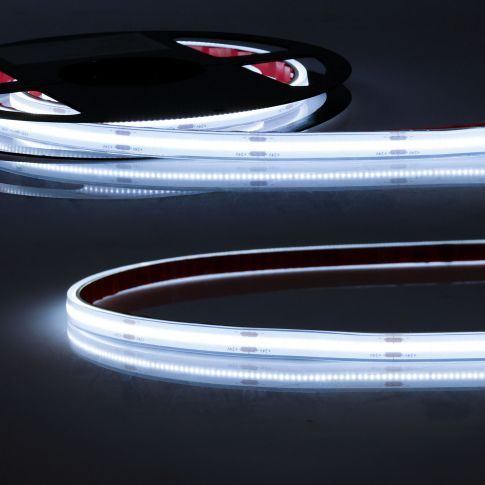

LED HT927/965 COB CCT 2 pole flex stripe for up to 100°C ambient, 24V DC, 8W, IP68, 5m, 512 LED/m

Name: LED HT927/965 COB CCT 2 pole flex stripe for up to 100°C ambient, 24V DC, 8W, IP68, 5m, 512 LED/m
SKU: 116134
Availability: InStock

In stock

Article number

116134

More Information

More Information
Article number	116134
Product description	LED HT927/965 COB CCT 2 pole flex stripe for up to 100°C ambient, 24V DC, 8W, IP68, 5m, 512 LED/m
GTIN - EAN	9009377155253
Features
Special features	Separation point: 62,5mm with 32 SMD each \| Pitch (light point center-center): 3,9mm \| 1 unit (roll) = 5m \| max. flex stripe length per infeed: 5m \| length tolerance + thermal expansion: 1% \| no cooling profile required \| incl. 3M VHB adhesive tape \| Clean and degrease substrate before sticking! Do not peel off again! \| silicone encapsulation \| SPECIAL FEATURE: connection cable on both sides \| enclosed accessories: end caps, mounting bracket and sealant
Nominal voltage	24 V DC
Rated power	8 W/m
Active power	7,5 W/m
Luminous flux in lumen	725 lm/m
Efficiency in LM	96
RGB light source	No
Color temperature	2700K - 6500K
Permissible ambient temp.	-20°C - 100°C
CRI Ra	90
Beam angle	110°
Dimmable	Yes
Dimming type	PWM
Dimming Specifications	Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer
Protection class	IP68
Housing material	Silicone
Pitch SMD (mm)	3.90
LED per disconnection point	32,000000
Max. length per feed (m)	5.00 m
Cooling mass g/m	0.00 g/m
Tape type	3M VHB
Potting material	Silikon
LED per roll	2.560,00
Enclosed accessories	2 Endkappen, 2 Anschlusskappen, 20 Montagebügel und 1 Tube Dichtstoff
Separation point (mm)	62.50 mm
Weight in gramm	175
Length in mm	5000,0
Width in mm	10,0
Height in mm	6,0
Lifetime L70\|B10	38000
Useful life L70\|B50	57000
Useful life L80\|B50 in hours	50000
Guarantee in years	3
Bulky goods	N
Net price	N
Excess lengths	N
