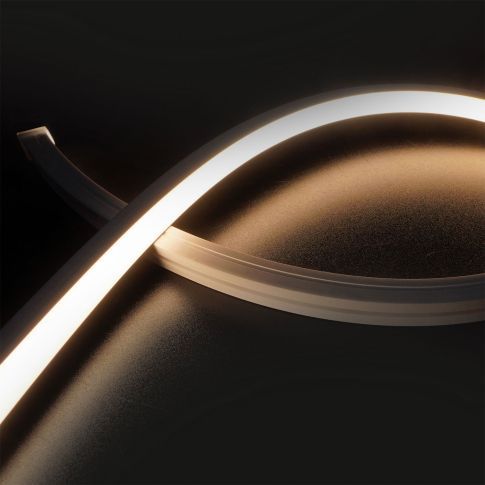

LED NEON930 flex stripe B13H13, 24V DC, 12W, IP67, 2700K, 5m roll, 140 LEDs/m, incl. clips
In stock
Article number
117685
| Article number | 117685 |
|---|---|
| Product description | LED NEON930 flex stripe B13H13, 24V DC, 12W, IP67, 2700K, 5m roll, 140 LEDs/m, incl. clips |
| GTIN - EAN | 9009377179969 |
| Features |        |
| Special features | Separation point: 50 mm with 7 SMDs each | Pitch (light point center- center): 7.14 mm | 1 unit (roll) = 5 m | max. flex stripe length per infeed: 5 m | Length tolerance + thermal expansion: 1% | No cooling profile required | No adhesive tape! | Silicone encapsulation | Special feature: 30 cm 2-pole sheathed cable on both sides, white, connection at the front, open stranded wire | NOTE: End caps flush with width and height, vertically bendable (bending radius min. 60 mm) | Flame-retardant and flame-resistant (IEC 60695-11-5), IK08 (IEC 62262), salt spray resistant (IEC 60068-2-11:2021), UV resistant (ASTM G154-2016) |
| Nominal voltage | 24 V DC |
| Rated power | 12 W/m |
| Active power | 12 W/m |
| Luminous flux in lumen | 680 lm/m |
| Efficiency in LM | 56 |
| RGB light source | No |
| Color temperature | 2700K |
| Permissible ambient temp. | -20°C - 40°C |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP67 |
| Housing material | Silicone |
| Pitch SMD (mm) | 7.00 |
| Max. length per feed (m) | 5.00 m |
| Cooling mass g/m | 0.00 g/m |
| Tape type | ohne Klebeband |
| Separation point (mm) | 50.00 mm |
| Weight in gramm | 1040 |
| Length in mm | 5000,0 |
| Width in mm | 13,0 |
| Height in mm | 13,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Bulky goods | N |
| Net price | N |
| Excess lengths | N |
