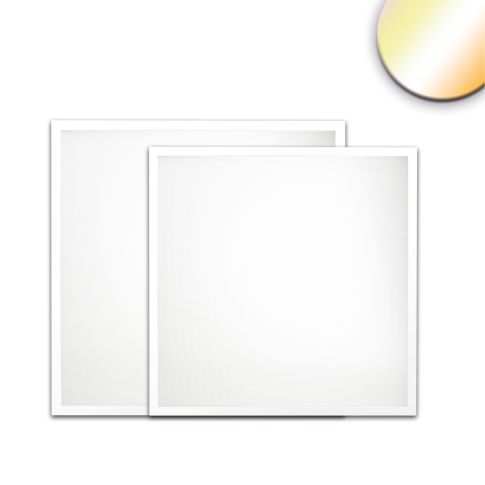

LED Panel Backlight Line 625 UGR<19 8H/8H, CRI90, 36W, ColorSwitch 3000|4000|6000K, Push/DALI dim.
In stock
Article number
116888
| Article number | 116888 |
|---|---|
| Product description | LED Panel Backlight Line 625 UGR<19 8H/8H, CRI90, 36W, ColorSwitch 3000|4000|6000K, Push/DALI dim. |
| GTIN - EAN | 9009377168703 |
| Features |        |
| Special features | Through-wiring possible via double plug-in clamp |
| Nominal voltage | 220 - 230 V DC |
| Permissible ambient temp. | -20°C - 40°C |
| Rated power | 36 W |
| Active power | 36 W |
| Luminous flux in lumen | 4350 lm |
| Efficiency in LM | 120 |
| Color temperature | 3000 K 4000K 6000K |
| CRI Ra | 90 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | DALI oder Push |
| Protection class | IP40 |
| Housing material | Aluminum |
| Housing color | white |
| Weight in gramm | 1750 |
| Length in mm | 620,0 |
| Width in mm | 620,0 |
| Height in mm | 30,0 |
| ext. Transformer length | 103.00 |
| ext. Transformer width | 69.00 |
| ext. Transformer height | 31.00 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
