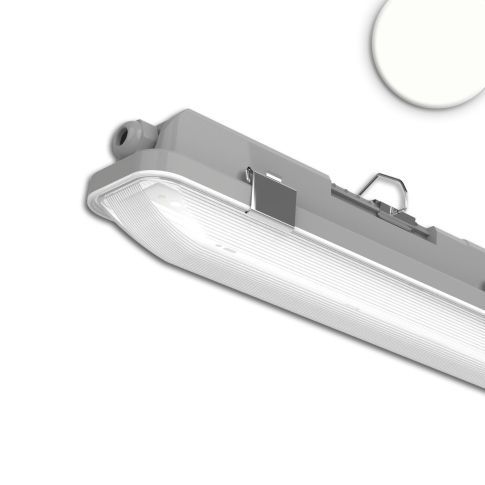

LED Tri Proof Luminaire SL 150cm, IP66, 57W, 140lm/W, 4000K, DALI dimmable
Article is located in the inlet, please contact the internal sales team
Article number
116390
| Article number | 116390 |
|---|---|
| Product description | LED Tri Proof Luminaire SL 150cm, IP66, 57W, 140lm/W, 4000K, DALI dimmable |
| GTIN - EAN | 9009377159275 |
| Features |           |
| Special features | Power switch | 5-pole through-wired | PUSH/DALI dimmable | integrated replaceable driver | robust PMMA housing | plug-in replaceable luminaire insert with PC cover | 5x2-pole spring terminal on both sides | connection option at the rear via centrally positioned rubber grommet | incl. spring steel mounting clips | optional upgrade with emergency power battery module (116049) or order pre-wired (116366) |
| Nominal voltage | 220 - 240 V AC |
| Active power | 57 W |
| Efficiency in LM | 140 |
| Luminous flux in lumen | 8000 lm |
| Color temperature | 4000K |
| CRI Ra | 82 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | DALI |
| Protection class | IP66 |
| Housing color | gray |
| Housing material | Polycarbonate |
| Weight in gramm | 1830 |
| Width in mm | 75,0 |
| Height in mm | 81,0 |
| Length in mm | 1465,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | Y |
